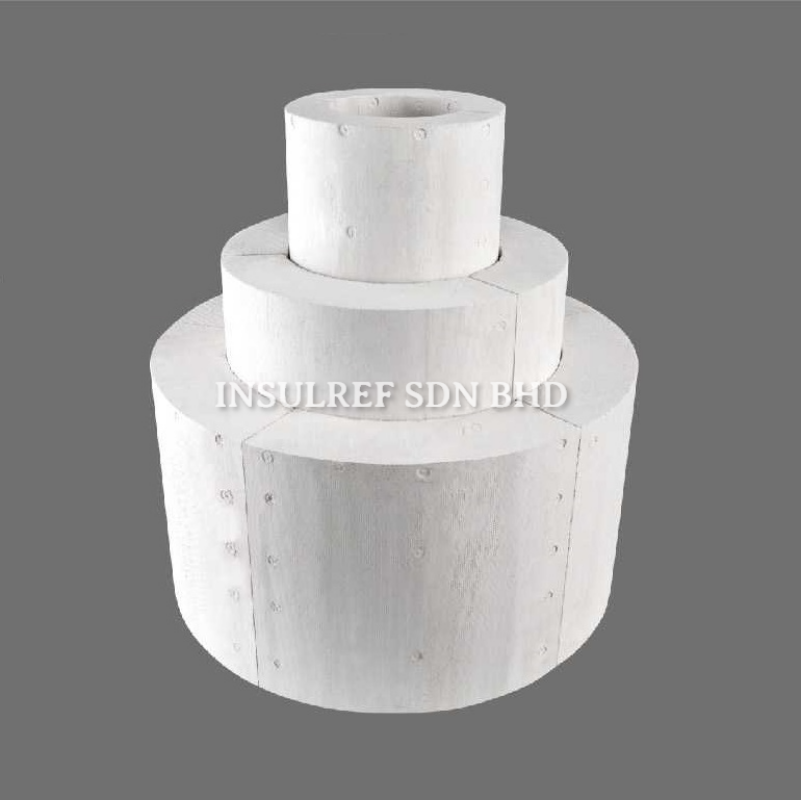

CALCIUM SILICATE - PIPE SECTIONS
It is the microcellular structured inorganic rigid and super-light heat insulation material mainly composed of inorganic siliceous and calcium and made by special technology such as the hydrothermal reaction under high temperature and high pressure etc. And it's the national inspection-free product that has firstly won the ISO9001 certification in the same industry. It can still maintain the high insulating effect at 650℃ and is advantageous in the stability of coping with temperature changes. With super-low chloride ion content, it can provide very nice protection on pipelines, and is prefabricated to shape up, greatly extending the service life. Additionally, the company has kept upgrading product technology to improve the product, reducing the product density from 220kg/m³ to 180kg/m³ while maintaining its strength, thus reducing the thermal conductivity from 0.065 to 0.049.
Applicable Scope
It's applicable to equipment and pipeline facilities in petroleum refinery, chemical industry, hydroelectricity, nuclear power, thermal power and city heat supply network.
Technical Data
| PROPERTIES | UNIT | ASTM C533 | EGB10699 | ASKE | |
| Density | Kg/m3 | ≤250 | ≤220 | ≤200 | |
| Maximum Service Temperature | ℃ | 650 | 650 | 650 | |
|
Thermal Conductivity per ASTM C518/C1114 |
(50℃) | W/m.k | ≤0.060 | ● | ≤0.052 |
| (93℃) | ≤0.065 | ≤0.065 | ≤0.0535 | ||
| (100℃) | ● | ≤0.065 | ● | ||
| (149℃) | ≤0.072 | ● | ≤0.054 | ||
| (200℃) | ≤0.079 | ≤0.077 | ≤0.056 | ||
| (260℃) | ≤0.087 | ● | ≤0.0757 | ||
| (300℃) | ● | ≤0.088 | ● | ||
| (371℃) | ≤0.102 | ● | ≤0.0923 | ||
| (400℃) | ● | ≤0.106 | ● | ||
| (500℃) | ● | ≤0.127 | ≤0.098 | ||
| (538℃) | ≤0.111 | ● | ≤0.1002 | ||
| Linear Heat Shrinkage per ASTM C 356 | % | ≤2.0 | ≤2.0 | ≤1.3 | |
| Flexural Strength per ASTM C 203 | MPa | ≥0.344 | ≥0.30 | ≥0.36 | |
| Compressive Strength per ASTM C 165 | MPa | ≥0.689 | ≥0.45 | ≥0.85 | |
| Weight Loss by Tumbling per ASTM C 421(First 10 minutes) | % | ≤20 | ● | ≤10 | |
| Weight Loss by Tumbling per ASTM C 421 (Second 10 minutes) | % | ≤40 | ● | ≤20 | |
| Hot Surface Performance per ASTM C 411 (650℃) | CM | ≤0.635 （No through-cracking） |
● | ≤0.635 （No through-cracking） |
|
|
Surface Burning Characteristics per ASTM E841 |
Flame Spread Index | ● | 0 | ● | 0 |
| Smoke Developed Index | ● | 0 | ● | 0 | |
| Moisture Content per ASTM C 1616 | % | ≤20 | ● | ≤4 | |
| Non-Combustible Property per ASTM E 136 | ● | Pass | ● | Pass | |
| Chlorine Content | ● | ASTM C795 | ● | ASTM C795 | |
| ITEM | SLAB | CURVED | PIPE |
| Length(mm) | 600 | 600 | 600 |
| Width(mm) | 300/150 | 150/100 | 0.5"- 60"(inside diameter) |
| Thickness(mm) | 25-100 | 25-100 | 25-100 |
